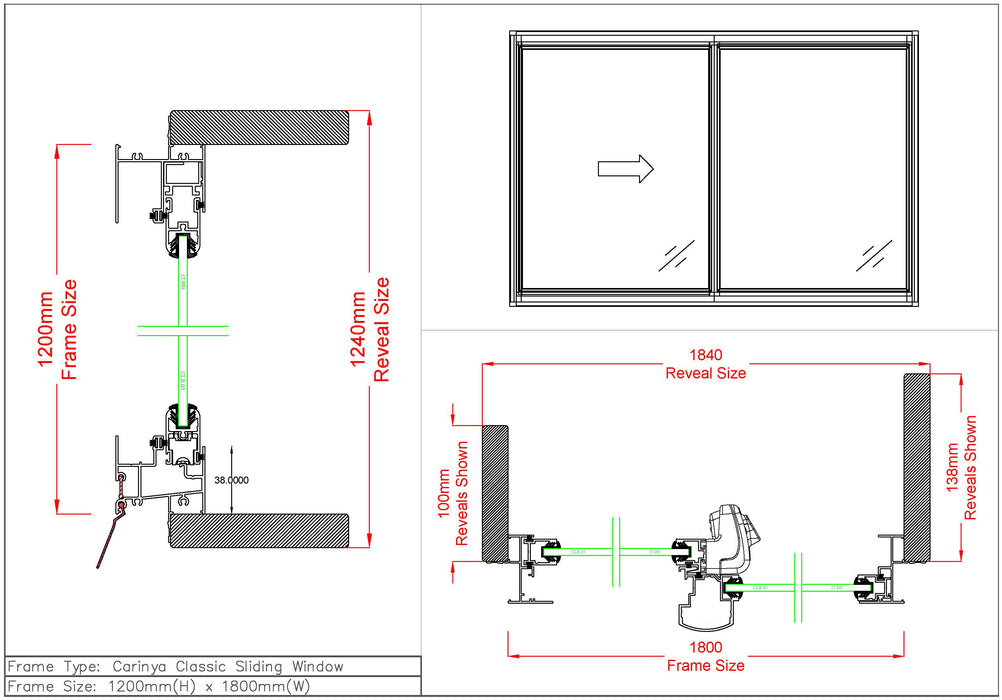

Stud opening sizes for reveal windows ONLY.
Height - 1250mm
Width - 1850mm
Weight - Single 34kg / Double 54 kg
Don't have the options you want? Contact our custom design team here to get a quote.
Carinya has many visible advantages over alternative products in addition to its obvious aesthetic qualities, these include:
- Exclusive handle located on the mullion for ease of access and cleaner lines.
- In built weather flaps - a feature of all Carinya windows - to reduce air and water infiltration, cover drain slots and minimise insect intrusion.
- Proprietary adjustable, non-corrosive roller system - the ‘engine room’ of these high performance windows - provides an effortless gliding motion that makes the window a joy to operate.
- Anti-lift block fitted above the sash to prevent manipulation and increase security.
- Mullion and transom end caps that ensure insects have no place to hide.
Energy Efficiency
The Carinya Collection of aluminium framed windows and doors has been specifically designed to be environmentally friendly, reflecting Carinya's commercial market heritage, where thermal and acoustic performance are often critical.
Of all building materials including glass, timber and masonry only one material is 100% recyclable - Aluminium.
Unlike many aluminium windows, Carinya has been designed for all major forms of eco-friendly glazing options without any alteration to the frame or any unsightly add-ons.
Carinya frames are designed for eco-friendly Low E glass, high thermal and high acoustic performance 10.5mm glazing. To maximise the energy efficiency of your glazing discuss your project with a specialist Carinya Dealer and/or your architect or designer.
Remember the three most important issues for achieving maximum energy efficiency in a home are:
- Orientation - always try and have living areas facing north with seasonal shading.
- Insulation.
- Window quality and performance.
Photo is inside looking out to show Hardware.
