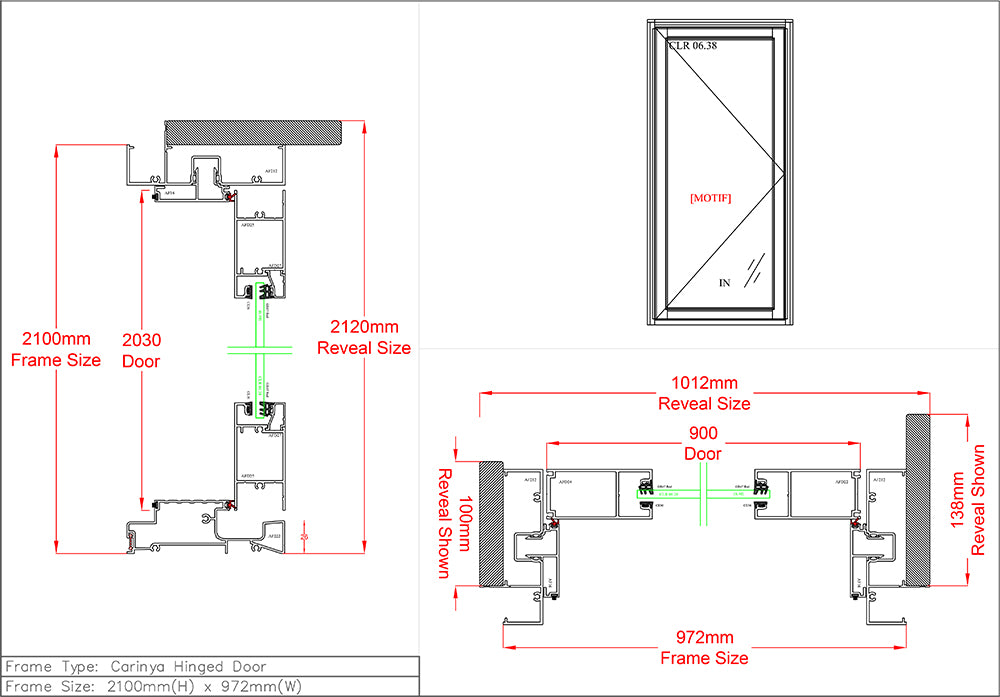

Stud opening sizes for reveal windows ONLY.
Height - 2130mm
Width - 1022mm
Weight - Single 40kg / Double 52kg
Panel Height - 2030mm
Panel Width - 900mm
All Hinge Doors include a Kilara Hardware. You can view details on this hardware here. View Premium Verta handle option here.
Don't have the options you want? Contact our custom design team here to get a quote.
The Carinya Select Hinged Door is a premium product designed for those seeking superior functionality and style as a grand entry to their home.Consisting of a modern designer look, the Carinya Hinged Door extrusions are a consistent 85mm wide face on both the stiles and rails, combined with a 40mm thick panel. This allows a balanced visual face and allows a vast array of hardware lock options. Combined with optional spigots, these door panels are superior in strength and performance.
- A generous 125mm frame allowing for integrated screening, as well as multiple combinations of single, double or sidelights, the Select Hinged Door is the optimal choice.
- A 92mm frame is also available for when screening is not required or for typical open out configurations. This also allows flexibility in design and budget.
- The Carinya attention to detail includes concealed flush bolt brackets, reducing visible fixings, as well as custom extrusion design allowing for clean interaction with door hardware.
The entire Carinya Collection has been fully tested to meet or exceed Australian Standards AS2047, AS1170, AS1191 and AS3959.
